CNC Attachments

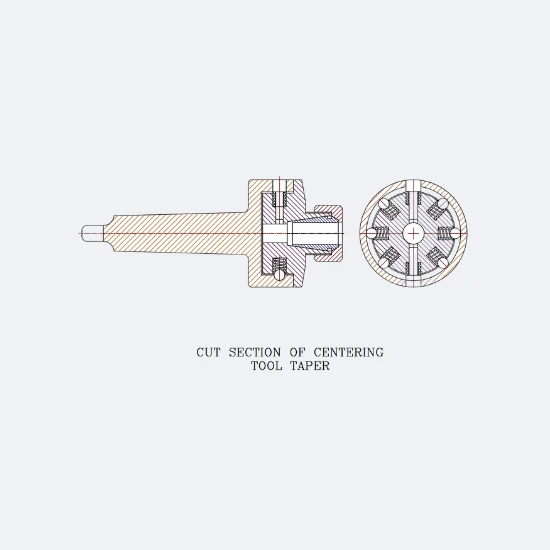

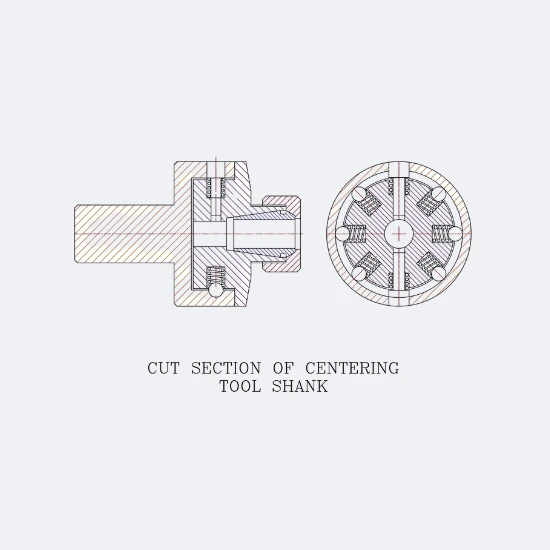

Centring Tool Holder

Precision Chamfering – Front and Back For back-chamfering or deburring on drill presses, CNC machines, tool or turret lathes, multi-spindle machines and jig boring machines. Consistently accurate back-chamfering, deburring, and back-countersinking for diameters.

Ordering Code

CT D020 0100
CT D025 0100
CT D032 0100
CT MT02 0100
CT MT03 0100
CT MT04 0100

Clear

Operating Principle , Features and Application

Operating Principle:

Illustrated below is the basic operating principle for the CNF Precision Chamfering tool. Piloting – The tool diameter pilots into the hole up to the pre-formed cam opposite to the cutting edge. Actuation – The tool travels forward and is actuated by the cam, generating the back chamfer. Chamfering – The tool continues to travel forward, forming the top chamfer.

Features:

Fast cycle times
Available with high-speed steel or solid carbide cutters for diameters from 0.059 to 0.390 inch (1.50 to 9.90 mm)
Tools for diameters of 10 mm or larger use standard replaceable inserts for large diameters

Applications:

CH Tool performing front and back-chamfering operation using tool with modular holder. Front and back chamfering or deburring on drill presses, CNC machines, tool or turret lathes, multi-spindle machines, and jig boring machines.
