Adjustable Vises have been engineered to be the ideal solution for low-profile work holding. Available in sizes 50 mm to 250mm widths, these vises can accommodate a wide variety of workpiece. The quick-change grip down jaws incorporates a pull-down feature to minimize jaw lift. Multiple jaw styles make this vise system configurable for most work holding needs.

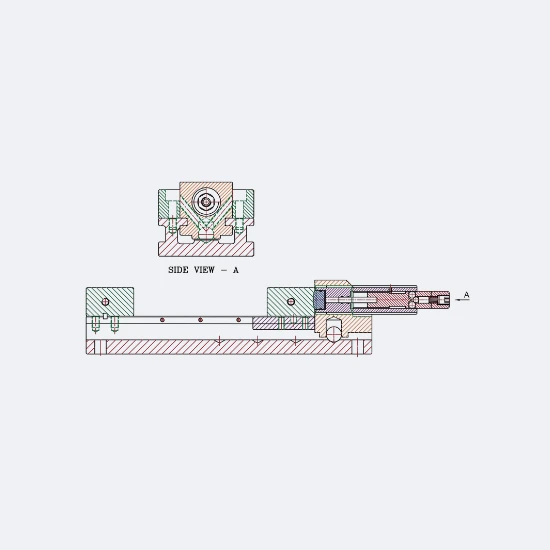

Operating Principle:
The floating movable jaw allows fast and safe clamping of rough workpieces that are not perfectly parallel. The precision modular vise in the standard version is supplied with a guided movable jaw running parallel along the entire vise base axis. The fixed jaw can be rotated 180 degrees, and its back step matches accurately with the prismatic jaw step, thereby increasing the maximum vise opening. Jaw plates manufactured with a pull-down angle ensure that, during the clamping operation, the workpiece is pulled downward firmly against the vise base. Adjustable vises are available in various sizes and are defined by base width or jaw width, for example, W100 = base width or jaw width of 100 mm.
Features:
Applications:
