V R COATINGS
Manufacturer & Exporter of Dispensing Machines, Spray Painting Equipment, Transfer Pumps & more
VRC Solutions
Coating and Painting
Coating and painting are crucial processes within the industrial sector, serving various purposes from enhancing aesthetics to providing protection and improving functionality.
Dosing & Dispensing
Dosing and dispensing are integral processes utilized across various industries to accurately measure and distribute precise amounts of liquids, powders, or other substances.
Greasing & Lubrication
Greasing and lubrication are essential maintenance practices employed in various industries to reduce friction, enhance machinery performance, and prolong the lifespan of mechanical components.
Who We Are
With a workforce of about more than 200+ young, skilled and professional workforce and equipped with state of the art modern design tools and up-to-date manufacturing facilities, VR Coatings Pvt. Ltd. has made its presence felt in the global market.
An ISO, TUV, ATEX certified company based in Pune, India since 1985. We are engaged in the Manufacturing and Installation of fluid handling equipment’s used especially for spray painting equipment, dispensing, pipe coating, transferring, metering, proportioning, mixing & dosing equipments. Even more, we also provides customised solutions for a wide range of liquids and semi-solids like Paint, Sealant, Adhesive, Wax, Oil , Grease, Solvents, etc.
Applications
VR Coatings equipment has within a short period of time found applications in various segments of the industry including Automobile, Aeronautics, Railway, Naval, Construction, Furniture manufacturing, Food, Pharmaceuticals, Heavy Engineering, Container manufacturing, etc.
Our Featured Products
Cheetah
Rhino
Drum Press
Our Featured Products
Arcu cursus euismod quis viverra nibh cras pulvinar mattis nunc.

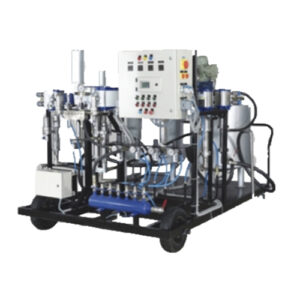

Cheetah
Spray Painting Equipment Cheetah Two Component Hot Airless Spray Painting Equipment Download Catalogue Key Features Technical Specifications Applications Pneumatically sensed Air Motor High Flow Rate Stainless Steel rust proof Hydraulic Body Sophisticated automatic flow valve for remote control Electrical direct or oil jacketed heating Easy to handle mounted on robust trolley Fixed I Variable mixing ratio Ice Free Air Motor Modular design to achieve various mixing ratios Online ratio monitoring PLC based monitoring system for mixing ratio, digital display and auto flush. High viscosity transfer pump with ram I drum press. Hydraulic drive motor for high flow rating at high pressure Type 2k-350/79X79 X 150 2k-350/110X110X110 2k-350/110 X 110X79 2k-350/110X110X58 Mixing Ratio* 1:1 2:1 3:1 4:1 Transfer Ratio* 70 :1 65 :1 70:1 75:1 Output Per Cycle 300 cc 340 cc 300 cc 280 cc Air Motor Piston Φ 350 mm 350 mm 350 mm 350 mm Stroke Length 120mm 120mm 120mm 120mm Recommended Spray Volume@25 cycles per min 7.5 ltr. 8.5 ltr. 7.5 ltr. 7.0 ltr. Air Inlet Pressure Max. 6 bar 6 bar 6 bar 6 bar Output Pressure Max. 420 bar 390 bar 420 bar 450 bar Air Consumption N ltr/min 6800 6800 6800 6800 Pneumatically sensed Air Motor High Flow Rate Stainless Steel rust proof Hydraulic Body Sophisticated automatic flow valve for remote control Electrical direct or oil jacketed heating Easy to handle mounted on robust trolley Fixed I Variable mixing ratio Ice Free Air Motor Modular design to achieve various mixing ratios Online ratio monitoring PLC based monitoring system for mixing ratio, digital display and auto flush. High viscosity transfer pump with ram I drum press. Hydraulic drive motor for high flow rating at high pressure Type 2k-350/79X79 X 150 2k-350/110X110X110 2k-350/110 X 110X79 2k-350/110X110X58 Mixing Ratio* 1:1 2:1 3:1 4:1 Transfer Ratio* 70 :1 65 :1 70:1 75:1 Output Per Cycle 300 cc 340 cc 300 cc 280 cc Air Motor Piston Φ 350 mm 350 mm 350 mm 350 mm Stroke Length 120mm 120mm 120mm 120mm Recommended Spray Volume@25 cycles per min 7.5 ltr. 8.5 ltr. 7.5 ltr. 7.0 ltr. Air Inlet Pressure Max. 6 bar 6 bar 6 bar 6 bar Output Pressure Max. 420 bar 390 bar 420 bar 450 bar Air Consumption N ltr/min 6800 6800 6800 6800 Product Categories Related Products View All Products Feel Free to contact us Have questions about our services or a project that needs quoting? Answers are always just an email or phone call away Get in Touch
Rhino
Spray Painting EqUipment Rhino Heavy Duty Airless Spray Painting Equipment The range is designed for tough working conditions and suitable for high viscosity, solventless, low solvent coating, semisolid coating, marine coating, etc. Download Catalogue Key Features Specifications 1 Specifications 2 Applications Pneumatically sensed Air Motor High Flow Rate Stainless Steel rust proof Hydraulic Body Easy Maintenance Ice Free Air Motors Light and Easy to handle Ice Free Air Motor Compliance to EC Norms Type 28.550 30.350 35.275 45.350 50.210 55.275 *Ratio 28:1 30:1 35:1 45:1 50:1 55:1 Output per Cycle 550 cc 350 cc 275 cc 350 cc 210 cc 275 cc Air Motor Piston 0 300 mm 250 mm 250 mm 300 mm 250 mm 300 mm Stroke Length 120 mm 120 mm 120 mm 120 mm 120 mm 120 mm Recommended Spray Volume @ 25 cycles per min 13.75 ltr 8.75 ltr. 6.8 ltr. 8.75 ltr. 5.25 ltr. 6.8 ltr. Air Inlet Pressure Max. 7 bar 7 bar 7 bar 7 bar 7 bar 7 bar Output Pressure Max. 196 bar 210 bar 245 bar 315 bar 350 bar 385 bar Air Consumption N ltr/min at 25 cycles/min 3400 2400 2100 3400 2100 2700 Type 60.180 60.350 70.150 75.210 75.275 100.210 *Ratio 60:1 60:1 10:1 75:1 75:1 100:1 Output per Cycle 180 cc 350 cc 150 cc 210 cc 275 cc 210 cc Air Motor Piston 0 250 mm 350 mm 250 mm 300 mm 350 mm 350 mm Stroke Length 120 mm 120 mm 120 mm 120 mm 120 mm 120 mm Recommended Spray Volume @ 25 cycles per min 4.5 ltr. 8.75 ltr. 3.75 ltr. 5.25 ltr. 6.87 ltr. 5.25 ltr. Air Inlet Pressure Max. 7 bar 6 bar 6 bar 6 bar 6 bar 5 bar Output Pressure Max. 420 bar 360 bar 420 bar 450 bar 450 bar 500 bar Air Consumption N ltr/min at 25 cycles/min 2100 4100 2100 2700 4100 3500 Pneumatically sensed Air Motor High Flow Rate Stainless Steel rust proof Hydraulic Body Easy Maintenance Ice Free Air Motors Light and Easy to handle Ice Free Air Motor Compliance to EC Norms Type 28.550 30.350 35.275 45.350 50.210 55.275 *Ratio 28:1 30:1 35:1 45:1 50:1 55:1 Output per Cycle 550 cc 350 cc 275 cc 350 cc 210 cc 275 cc Air Motor Piston 0 300 mm 250 mm 250 mm 300 mm 250 mm 300 mm Stroke Length 120 mm 120 mm 120 mm 120 mm 120 mm 120 mm Recommended Spray Volume @ 25 cycles per min 13.75 ltr 8.75 ltr. 6.8 ltr. 8.75 ltr. 5.25 ltr. 6.8 ltr. Air Inlet Pressure Max. 7 bar 7 bar 7 bar 7 bar 7 bar 7 bar Output Pressure Max. 196 bar 210 bar 245 bar 315 bar 350 bar 385 bar Air Consumption N ltr/min at 25 cycles/min 3400 2400 2100 3400 2100 2700 Type 60.180 60.350 70.150 75.210 75.275 100.210 *Ratio 60:1 60:1 10:1 75:1 75:1 100:1 Output per Cycle 180 cc 350 cc 150 cc 210 cc 275 cc 210 cc Air Motor Piston 0 250 mm 350 mm 250 mm 300 mm 350 mm 350 mm Stroke Length 120 mm 120 mm 120 mm 120 mm 120 mm 120 mm Recommended Spray Volume @ 25 cycles per min 4.5 ltr. 8.75 ltr. 3.75 ltr. 5.25 ltr. 6.87 ltr. 5.25 ltr. Air Inlet Pressure Max. 7 bar 6 bar 6 bar 6 bar 6 bar 5 bar Output Pressure Max. 420 bar 360 bar 420 bar 450 bar 450 bar 500 bar Air Consumption N ltr/min at 25 cycles/min 2100 4100 2100 2700 4100 3500 Product Categories Related Products View All Products Feel Free to contact us Have questions about our services or a project that needs quoting? Answers are always just an email or phone call away Get in Touch

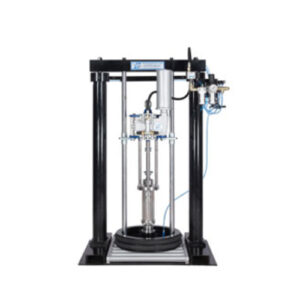

Drum Press
Dispensing Equipment Drum Press Medium and Heavy Duty Airless Drum Dispensing/Spray Painting Equipment The airless drum press dispensing pumps are equipped with medium duty (TIGER) or heavy duty (RHINO) range of pumps and are suitable for semi-solid and pasty materials. Download Catalogue Key Features Specifications Applications High flow rate pumps and guns Priming piston (shovel) type suction for high viscosity fluids Auto shut off for pumps Facility for twin pail switchover system Drum capacity upto 200 ltr. Custom built system for more drum capacity with special features Dispensing/spraying nozzles to suit your application Type 30.150D 35.275D 40.110D 55.275D 75.210D *Ratio 30 : 1 35 : 1 40 : 1 55 : 1 75 : 1 Output Per Cycle 150 cc 275 cc 110 cc 275 cc 210 cc Air Motor Piston Φmm 160 mm 250 mm 160 mm 300 mm 300 mm Stroke Length mm 120 mm 120 mm 120 mm 120 mm 120 mm *Recommended Dispensing/Spray Volume @10 cycles per Minute 1.5 ltr 2.75 ltr 1.1 ltr 2.75 ltr 2.1 ltr Air Inlet pressure Max. 6 bar 7 bar 6 bar 6 bar 6 bar Output pressure Max. 180 bar 245 bar 240 bar 330 bar 450 bar Air Consumption @15 Cycles/min N ltr 510 1420 510 1800 1800 High flow rate pumps and guns Priming piston (shovel) type suction for high viscosity fluids Auto shut off for pumps Facility for twin pail switchover system Drum capacity upto 200 ltr. Custom built system for more drum capacity with special features Dispensing/spraying nozzles to suit your application Type 30.150D 35.275D 40.110D 55.275D 75.210D *Ratio 30 : 1 35 : 1 40 : 1 55 : 1 75 : 1 Output Per Cycle 150 cc 275 cc 110 cc 275 cc 210 cc Air Motor Piston Φmm 160 mm 250 mm 160 mm 300 mm 300 mm Stroke Length mm 120 mm 120 mm 120 mm 120 mm 120 mm *Recommended Dispensing/Spray Volume @10 cycles per Minute 1.5 ltr 2.75 ltr 1.1 ltr 2.75 ltr 2.1 ltr Air Inlet pressure Max. 6 bar 7 bar 6 bar 6 bar 6 bar Output pressure Max. 180 bar 245 bar 240 bar 330 bar 450 bar Air Consumption @15 Cycles/min N ltr 510 1420 510 1800 1800 Product Categories Related Products View All Products Feel Free to contact us Have questions about our services or a project that needs quoting? Answers are always just an email or phone call away Get in Touch
What We Do
Manufacturing and installing solutions of fluid handing equipment & systems especially spray painting equipment, dispensing machines, transferring, metering, pipe coating, proportionating, mixing & dosing equipment “for a wide range of liquids and semi-solids like Paint, Sealant, Adhesive, Wax, Oil, Grease, Solvents, etc.
With modern design and manufacturing facilities at Pune (2 sites), now expanding at Vai, near Pune and one assembly unit at Sankt Augustin Germany.
Our Clients
Feel Free To Contact Us
Have questions about our services or a project that needs quoting? Answers are always just an email or phone call away
